| Place of Origin: | China |
| Brand Name: | Exceedchem |
| Certification: | ISO90001:2008 |
| Model Number: | LFPE3288 |
| Minimum Order Quantity: | 1mt |
|---|---|
| Price: | Contact us for latest price |
| Packaging Details: | 22KG/DRUM,220KG/DRUM |
| Delivery Time: | within two weeks after confirming the order |
| Payment Terms: | TT; LC at sight |
| Supply Ability: | 1000tons per year |
| Series: | Low Free PPDI/PTMEG Series | Packaging: | 22KG/DRUM,220KG/DRUM |
|---|---|---|---|
| Application: | For High-end Polyurethane Elastomer Products | Appearance: | Liquid |
| Hardness: | 88 Shore A | NCO Content: | 2.4-2.7% |

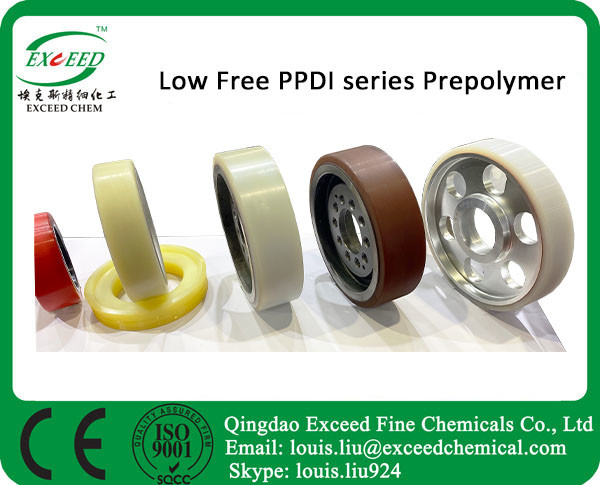

High Performance Low Free Polyurethane PPDI/PTMEG Series LFPE3288
1. Description
LFPE3288 based on PPDl/PTMEG prepolymer with very low free TDI content, allows to obtain a none toxic polyurethane system and to reduce hazards during processing.
LF PPDI prepolymers with < 0.1% free isocyanate, offer elastomers designed to withstand extreme conditions where heat resistance, chemical resistance and superior dynamic mechanic properties that can not be served by standard polyurethane elastomers. Selected LF PPDI prepolymers can outperform HNBR at temperature as high as 150℃.
2. Application
For high-end polyurethane elastomer products.
3. Operation Conditions
| NCO Content (%) | 2.5 |
| Viscosity at 90℃ (cps) | 1500 |
| Process Temp.,°C | 90 |
| BDO Pot Life,Mintues | 12 |
| Demold Temp/Time,°C/min | 130/60 |
| Post Cure,°C/h | 120/15 |
4. Properties
| Hardness/ shore A | 88 |
| Tensile Strength/Mpa | 42 |
| 100% Modulus/MPa | 5.2 |
| 300% Modulus/MPa | 8.3 |
| Elongation at break/% | 730 |
| Tear strength/kN/m | 82 |
| Rebound, Bayshore/% | 67 |
| DIN Abrasion/mm3 | 20 |
| Compression Set B (70°C, 22hrs)/% | 37 |
5. Shelf life
Store away from moisture, at a temperature between10~30°C in unopened original package, its shelf life over six months.
6. Package
22KG/DRUM,220KG/DRUM
